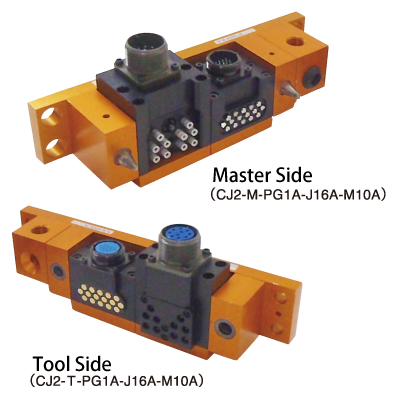

Couple Joint is a device used to easily and simultaneously connect and disconnect pneumatics and electric signals. Now electric signal lines and pneumatic fittings can be changed with the touch of the hand, shortening the traditional manual set-up times. The modules incorporate the same designs as the BL Quick-Change, with proven reliability and durability.

• Catalog (PDF)

Features of Couple Joint

Abundant utilities

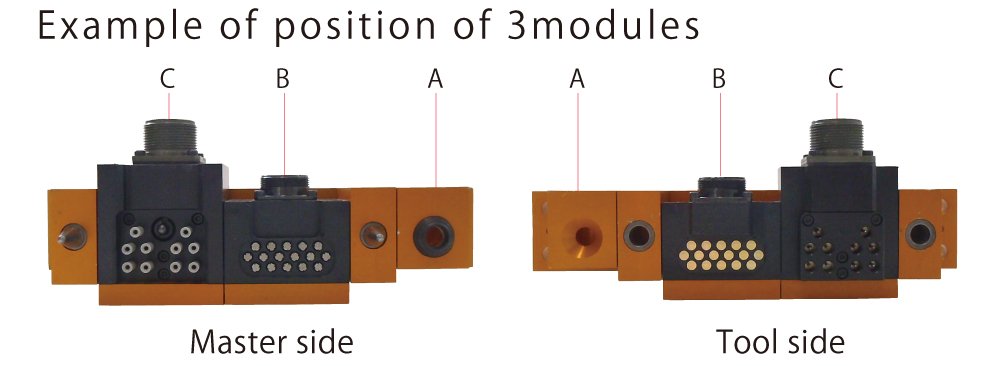

Up to three modules can be selected for various applications to exchange
dies or jigs in stamping and welding processes. Self-sealing pneumatic ports are also available.


Floating function ±1㎜

Couple Joint has a floating function for position compliance and gap adjustment between the master side and tool side.


Uses

溶接治具段取り替え時の配線
配管ワンタッチ接続・通電・通気が必要な移動台車と固定装置間の接続



Applications

プレス、射出成形など金型交換
溶接治具の交換

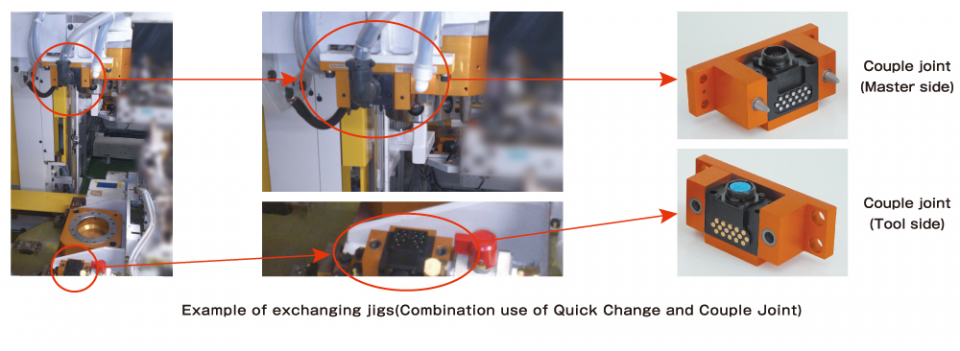

Examples of Use

Specifications

Outer dimension and weight	3 modules (with pneumatic port)	244×91×109㎜ 2.9kg CJ2 In case of- PS1A-J16A-M10A
	3 modules (without pneumatic port)	269×91×109㎜ 3.3kg In case of CJ2-J16A-M10A-M10A
Connection utilities	Electric signals  MAX.5A  DC/AC 200V  with contact probes	5A×16 ※1 ※2　 Master side JMR 2116M-D Tool side JMR 2116F-D
	Electric signals  MAX.13A  DC250V/AC 200V with plug-in contacts	13A×10 ※1 ※3 Master side D/MS3102A18-1P Tool side   D/MS3102A18-1S
	Pneumatic ports (with or without self sealing valve)	Rc3/8
Allowable temperature and humidity ranges		0～55℃、0～95％（non-condensing）

（※1）he plugs must be provided by user
（※2）Max.30.4A per connector
（※3）Max57.2A per connector

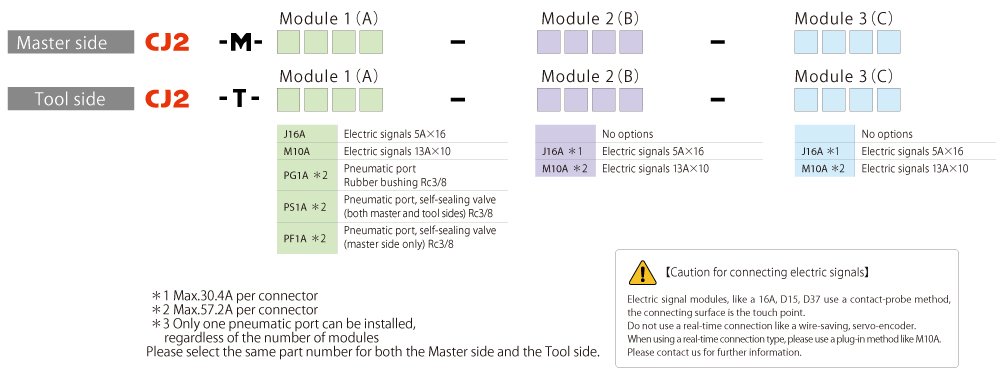

Model Selection
