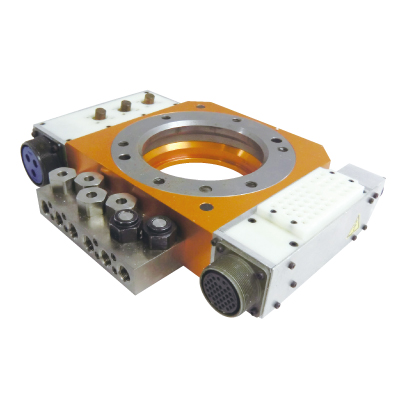

The BL QUICK-CHANGE Model GC-300A is a device for automatic tool changing, specially designed for changing material handling welding guns or guns with built-in transformers in a spot-welding line. Primary current, air pressure and electrical signals (Servo) modules can be selected for the GC-300A.The GC-300A provides increased production line efficiency and cost effectiveness.

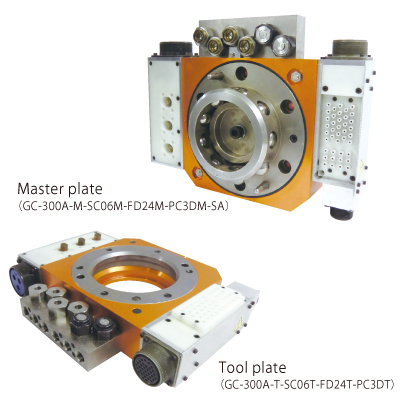

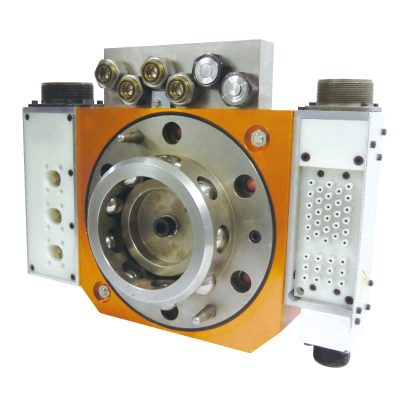

Master plate Attachments

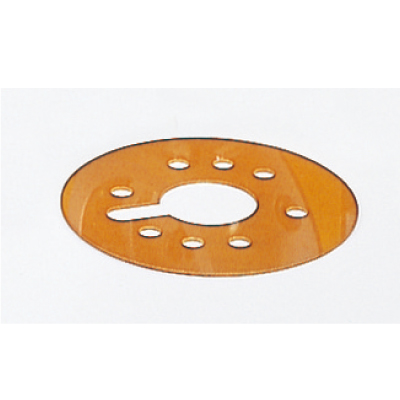

・1 Insulation plate
・2 insulation pins
・6 insulation washers
・6 insulation pipes
・6 bolts（M10×30）
・1 locating pin
・6 plain washers

• Catalog (PDF)

Features of GC-300A

Unidirectional cable and hose

The power and control cables and the pneumatic hose are oriented in a single direction.


The primary current module contains a floating mechanism

The primary current module is equipped with a self-cleaning function and a floating mechanism.


Self-sealing coolant ports

The check valves of the circulating coolant ports are equipped with a PTFE sleeve to prevent liquid spillage.


Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

Speciffications

Main Body
oad capacity (rated load)		2,940N（300kg）
Positional repeatability ※1		±0.025mm
Allowable dynamic moment	Bending direction (Tx, Ty)	5,292N･m（540kgf･m）
	Twisting direction (Tz)	4,704N･m（480kgf･m）
Coupling force (with air pressure of 0.49Mpa) ※2		31,360N（3,200kgf）
Materials	Frame	Aluminum alloy
	Lock/ unlock mechanism	Stainless steel
Overall dimension (when coupled)		W355×D265×H165mm
Weight  (Main body)	Master plate	18.5kg
	Tool plate	9.5kg
Lock/ unlock mechanism		Ball-locking mechanism
Required air pressure		0.39〜0.68MPa（4〜7kgf/cm2）
Allowable temperature and humidity ranges		0〜50℃、35〜90%（Non-condensing）
Lock/ unlock sensor	for lock status	1 built-in proximity switch E2E-X2D4 (OMRON)
	for unlock status	1 built-in proximity switch E2E-X2D4 (OMRON)
Approach sensor	for Tool plate position	Two built-in switch E2E-X2D4 (OMRON)



Modules
Electrical signal module (Servo module)	Code	Capacity	Master plate side connector		Tool plate side connector
	ES10M(T)	5A（220V）×10	D/MS3102A28-16P		D/MS3102A28-16S
	ES28M(T)	5A（220V）×28 ※3	D/MS3102A28-15P		D/MS3102A28-15S
	SC04M（T）	5A（220V）×28for signal※3	D/MS3102A28-15P		D/MS3102A28-15S
		20A（500V）×for servo motor ※4	D/MS3102A20-4P		D/MS3102A20-4S
	SC06M（T）	5A（220V）×17 for signal	D/MS3102A20-29P		D/MS3102A20-29S
		20A（500V）×5 for servo motor※5 13A（500V）×1 for servo motor※5	D/MS3102A20-17P		D/MS3102A20-17S
Fluid module	Code	Self-sealing condact ports (Master/Tool side)		Self-sealing pneumatic ports (Master side)
	FD24M（T）	Rc3/8×2		Rc3/8×4
	FD42M（T）	Rc3/8×4		Rc3/8×2
	FD40M（T）	Rc3/8×4		-
	FD02M（T）	-		Rc3/8×2
	FD04M（T）	-		Rc3/8×4
	FD06M（T）	-		RC3/8×6
	使用圧力範囲:0〜Max.0.68MPa （0〜7kgf/cm2）
Primary current module	Code	Capacity	Master plate side connector		Tool plate side connector
	PC3BM（T）	200A (42% usage) 130A in continuous duty 600V ×3	D/MS3102A28-22P		D/MS3102A28-22S
	PC3CM（T）	200A (42% usage) 130A in continuous duty 600V ×3	D/MS3102A36-3P		DD/MS3102A36-3S
	PC3DM（T）	200A（42% usage）130A in continuous duty 600V ×3	D/MS3102A36-5P		D/MS3102A36-5S
	PC3EM（T）	200A（42% usage）130A in continuous duty 600V ×3	Seal connector		Seal connector
Interface plate	Code	Type of pattern		Type of insulation
	SA	6・M10 PCD160		Insulation plate (phenol)
	SB	To user requirements		Insulation washer (POM)
