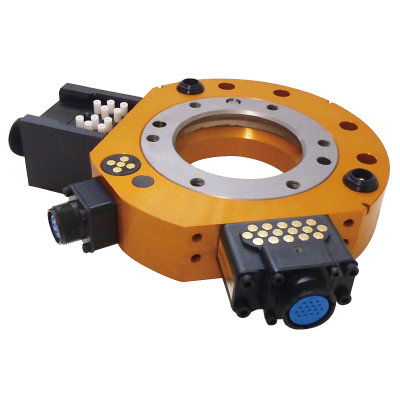

The BL QUICK-CHANGE Model Flex-100B is a device for quick and accurate automatic changing of multiple end-effectors, such as material handling, palletizing and deburring. Pneumatic blocks and electrical connector blocks can be selected for the Flex-100B.

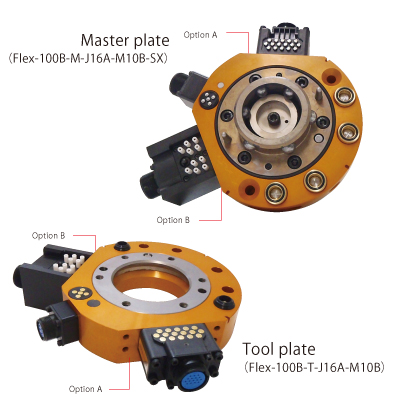

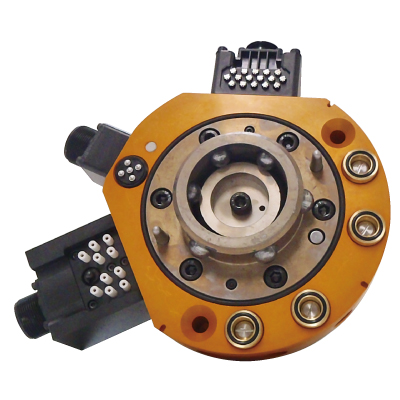

Master plate Attachments

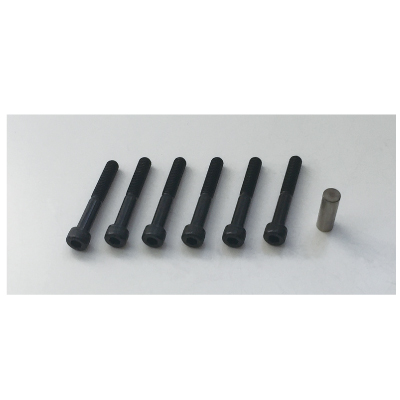

・6 bolts（M8×55）
・Stepped parallel pin×1
※Seal plate, O-ring and screws are pre-assembled.

• Catalog (PDF)

Features of Flex-100B

Heavy duty applications

For heavy duty applications, such as deburring, a special seal prevents dust from entering the locking mechanism and electrical contacts when the plates are coupled.



Self-sealing pneumatic ports

There are six pneumatic ports in the Master plate (Rc3/8) . Four of the six ports are self-sealing, which automatically shut off air pressure when uncoupled and allow for easier air control in the system.

Large misalignment correction capability

The unique design corrects misalignment when the Master and Tool plates couple. An approach sensor system, built into the plates, verifies coupling capability.

Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

Speciffications

Main Body
Load capacity (rated load)		980N（100kg）
Positional repeatability ※1		±0.015 mm
Allowable dynamic moment	Bending direction (Tx, Ty)	1,372N･m（140kgf･m）
	Twisting direction (Tz)	1,372N･m（140kgf･m）
Coupling force (with air pressure of 0.49MPa) ※2		10,290N（1,050kgf）
Materials	Frame	Aluminum alloy
	Lock/ unlock mechanism	Stainless steel
Overall dimension (when coupled)		φ178×H81.5mm
Weight  (Main body)	Master plate	3,900g
	Tool plate	2,250g
Self-separating mechanism		Ball-locking mechanism
Required air pressure		0.39〜0.68MPa（4〜7kgf/cm2）
Allowable temperature and humidity ranges		0〜50℃、35〜90%（Non-condensing）
Utilities	Electrical signals Max. 5 DC/AC200V Probe contact	5A×5 ※3
	Pneumatic ports	Rc3/8×4 (self-sealing) ※4
		Rc3/8×2
	Approach sensor	Senses Tool plate position up to 1.5mm distance



オプション
Utilities	D15A. D15B	Electrical signals	3A×15 ※5
	J16A. J16B	Electrical signals	5A×16 ※3 ※6
	M10A. M10B	Electrical signals	13A×10 ※3 ※7
	B15NA B15NB B15PA B15PB	Electric signals Max.50mA DC24V Non-contact system （Please refer to page 41 for details.）	50mA×15 WEB series connector ※3 In Zone　1 IP67
	B15DA B15DB	Electric signals Max.5mA DC12V Non-contact system （Please refer to page 41 for details.）	5mA×15 WEB series connector ※3 IP67
	E50A. E50B	Ground	500A (50% usage) ×1
	P18A. P18B	Pneumatic ports	Rc1/8×4
	P14A. P14B	Pneumatic ports	Rc1/4×2
	P38A. P38B	Pneumatic ports	Rc3/8×4
	P3WA. P3WB	Pneumatic ports	Rc3/8×2
Lock/unlock sensor ※8			Two built-in proximity switches

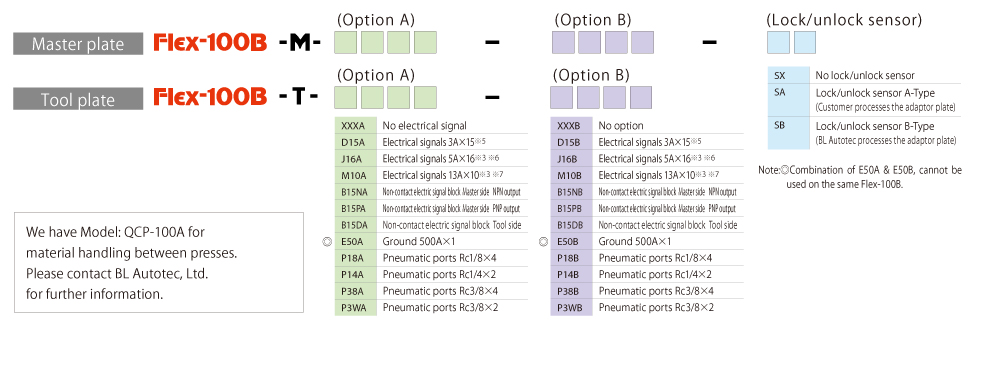

Ordering Information

Option

Electrical signal contact block

Ground

Lock/unlock sensor

Non-contact electric signal block

Pneumatic ports
