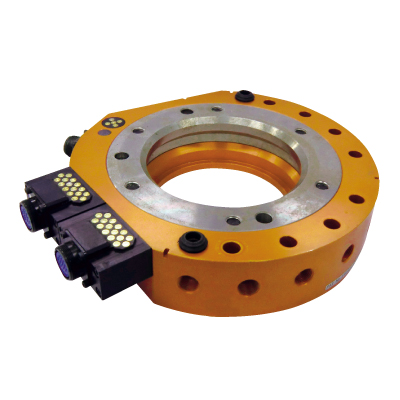

The BL QUICK-CHANGE Model Flex-300A is a device for automatic tool changing, specially designed for high payload capacity robots generally used in handling and palletizing. Optional electrical contacts or pneumatic ports can be selected for the Flex-300A.

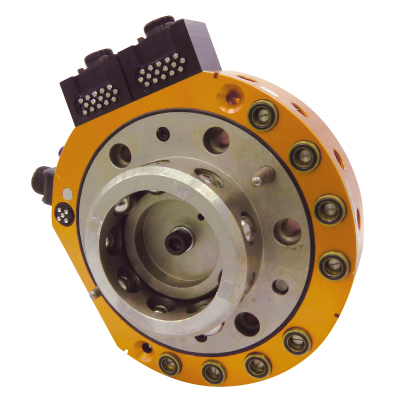

Master plate Attachments

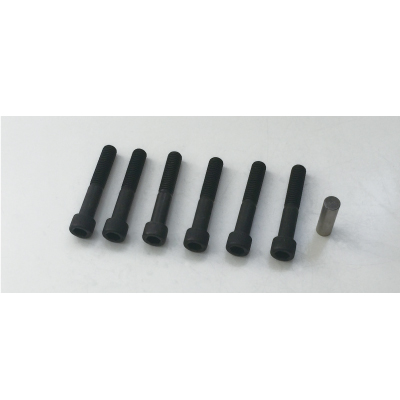

・6 bolts（M12×70）
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

• Catalog (PDF)

Features of Flex-300

Heavy duty applications

For heavy duty applications, a special seal prevents dust from entering the locking mechanism and electrical contacts when the two plates are coupled. (Load Capacity: 300kg/Allowable static moment (Tx, Ty) :270kgf・m)


Self-sealing pneumatic ports

There are ten pneumatic ports in the Master plate (Rc3/8). Eight of the ten ports are self-sealing, which automatically shut off air pressure when uncoupled and allow for easier air control in the system.


Large misalignment correction capability

The unique design corrects misalignment when the Master and Tool plates couple. An approach sensor system, built into the plates, verifies coupling capability.


Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

Speciffications

Main Body
Load capacity (rated load)		2,980N（300kg）
Positional repeatability ※1		±0.025 mm
Allowable dynamic moment	Bending direction (Tx, Ty)	5,292N･m（540kgf･m）
	Twisting direction (Tz)	4,704N･m（480kgf･m）
Coupling force (with air pressure of 0.49Mpa) ※2		31,360N（3,200kgf）
Materials	Frame	Aluminum alloy
	Lock/ unlock mechanism	Stainless steel
Overall dimension (when coupled)		φ259×H116mm
Weight  (Main body)	Master plate	13.2kg
	Tool plate	7.2kg
Self-separating mechanism		Ball-locking mechanism
Required air pressure		0.39〜0.68MPa（4〜7kgf/cm2）
Allowable temperature and humidity ranges		0〜50℃、35〜90%（ Non-condensing ）
Utilities	Electrical signals Max. 5 DC/AC200V Probe contact	5A×5 ※3
	Pneumatic ports	Rc3/8×8 (self-sealing) ※3
		Rc3/8×2
	Approach sensor	Senses Tool plate position up to 2.5mm distance



Options
Utilities	J16A J16B	Electrical signals	5A×16 ※3 ※5
	J32A J32B	Electrical signals	5A×32 ※3 ※5
	M10A M10B	Electrical signals	13A×10 ※3 ※6
	M20A M20B	Electrical signals	13A×20 ※3 ※6
	B15N B15P	Electric signals Max.50mA DC24V Non-contact system （Please refer to page 41 for details.）	50mA×15 WEB series connector ※3 In Zone 1 IP67
	B15D	Electric signals Max.5mA DC12V Non-contact system （Please refer to page 41 for details.）	5mA×15 WEB series connector ※3 IP67
	E50A E50B	Ground	500A (50% usage) ×1
	P18A P18B	Pneumatic ports	Rc1/8×4
	P14A P14B	Pneumatic ports	Rc1/4×2
	P38A P38B	Pneumatic ports	Rc3/8×4
	P3WA P3WB	Pneumatic ports	Rc3/8×2
Lock/unlock sensor ※6			Two built-in proximity switche

Option

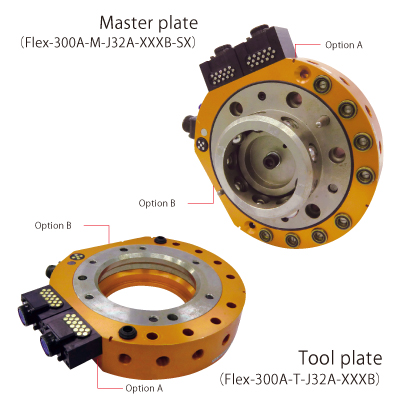

Electrical signal contact block

Ground

Lock/unlock sensor

Non-contact electric signal block

Pneumatic ports
