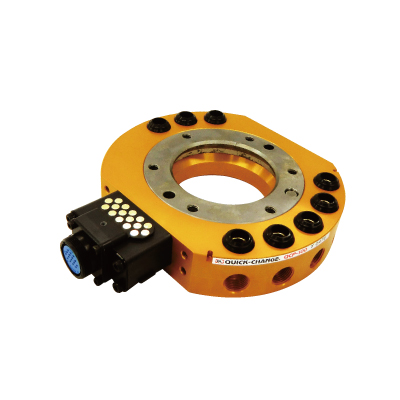

The BL QUICK-CHANGE Model QCP-100 is an automatic tool changer used in press handling applications for switching part-adsorption end-effectors. It is easy to set up ID confirmation on the Tool plate side, and the block itself is equipped with a protective cover. An electrical signal contact block without a connector on the tool side is available as an option.

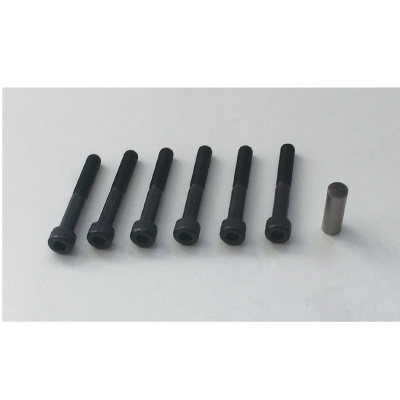

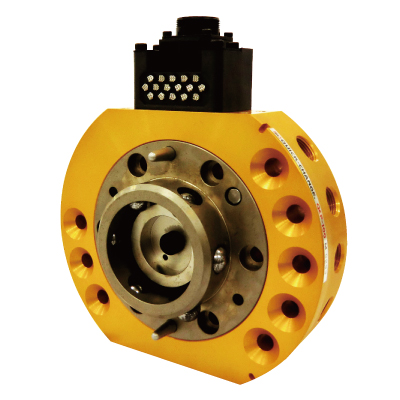

Master plate Attachments
・6 bolts（M8×55）
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

• Catalog (PDF)

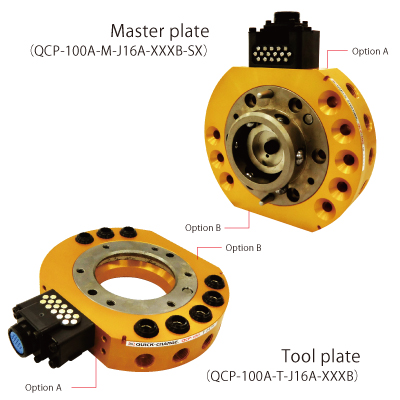

Features of QCP-100A

Body designed specially for press applications

Both sides of the Tool plate are cut, which allows it to be placed in an upright position, requiring less space for hand installation.

Utilities specially considered for press applications

Eight pneumatic vacuum ports are included on standard equipment, and the QCP-100 can be optionally equipped with up to 16 ports. The Tool plate has an optional electrical signal block contact without a connector (R16A/B). Directly-soldered hard-wiring makes a plug unnecessary, so it cannot be damaged when hands are exchanged. It is easy to assign ID discrimination in the hard-wiring section, and the block itself is protected by a metal cover.


Capability to assign power signals to the lock/unlock sensor
from the electrical signal contact block

Two types of power signals may be assigned to the lock/unlock sensor (optional) from the electrical signal contact block.

Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master plate and Tool plate to uncouple if the air pressure is shut off.

Specifications

Main Body
Load capacity (rated load)		980N（100kg）
Positional repeatability ※1		±0.015 mm
Allowable dynamic moment	Bending direction (Tx, Ty)	1,372N･m（140kgf･m）
	Twisting direction (Tz)	1,372N･m（140kgf･m）
Coupling force (with air pressure of 0.49Mpa) ※2		10,290N（1,050kgf）
Materials	Frame	Aluminum alloy
	Lock/ unlock mechanism	Stainless steel
Overall dimension (when coupled)		φ179×H79.5mm
Weight  (Main body)	Master plate	3.5kg
	Tool plate	2.0kg
Self-separating mechanism		Ball-locking mechanism
Required air pressure		0.39〜0.68MPa（4〜7kgf/cm2）
Allowable temperature and humidity ranges		0〜50℃、35〜90%（Non-condensing）
Utilities	Pneumatic ports	Rc3/8×8



Options
Utilities	J16A J16B	Electrical signals	5A×16 ※3 ※7
	M10A M10B	Electrical signals	13A×10 ※3 ※8
	L16A	Electrical signals	55A×16 ＋ lock/unlock signals ×3 (Master side only) ※3 ※4 ※7
	L07A	Electrical signals	13A×7 ＋ lock/unlock signals ×3 (Master side only) ※3 ※5 ※8
	R16A R16B	Electrical signals	5A×16 (Tool side only. An electrical signal contact block             without a connector specification) ※5 ※6
	B15N B15P	Electric signals Max.50mA DC24V Non-contact system （Please refer to page 41 for details.）	50mA×15 WEB series connector ※3 In Zone　1 IP67
	B15D	Electric signals Max.5mA DC12V Non-contact system （Please refer to page 41 for details.）	5mA×15 WEB series connector ※3 IP67
	P38A P38B	Pneumatic ports	Rc3/8×4
Lock/unlock sensor			Two built-in proximity switches

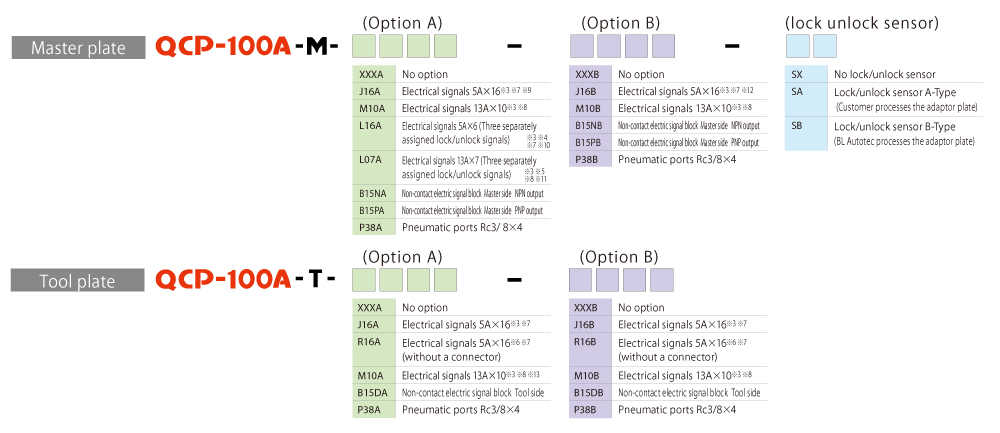

Ordering Information

Option

Electrical signal contact block

Lock/unlock sensor

Non-contact electric signal block

Pneumatic ports
