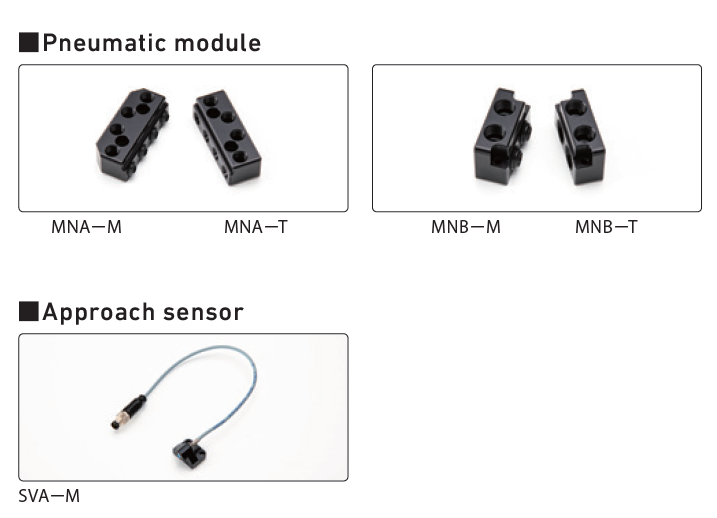

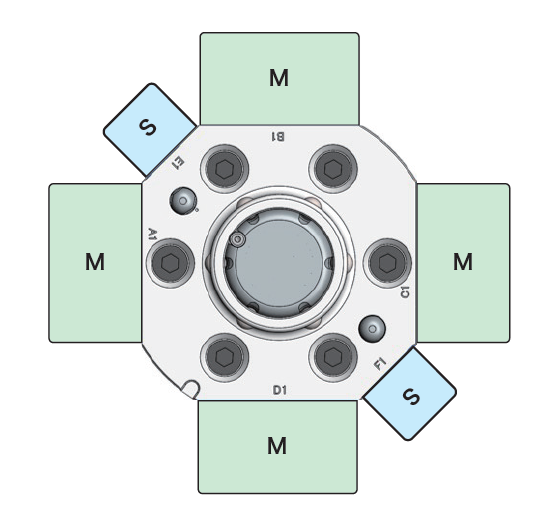

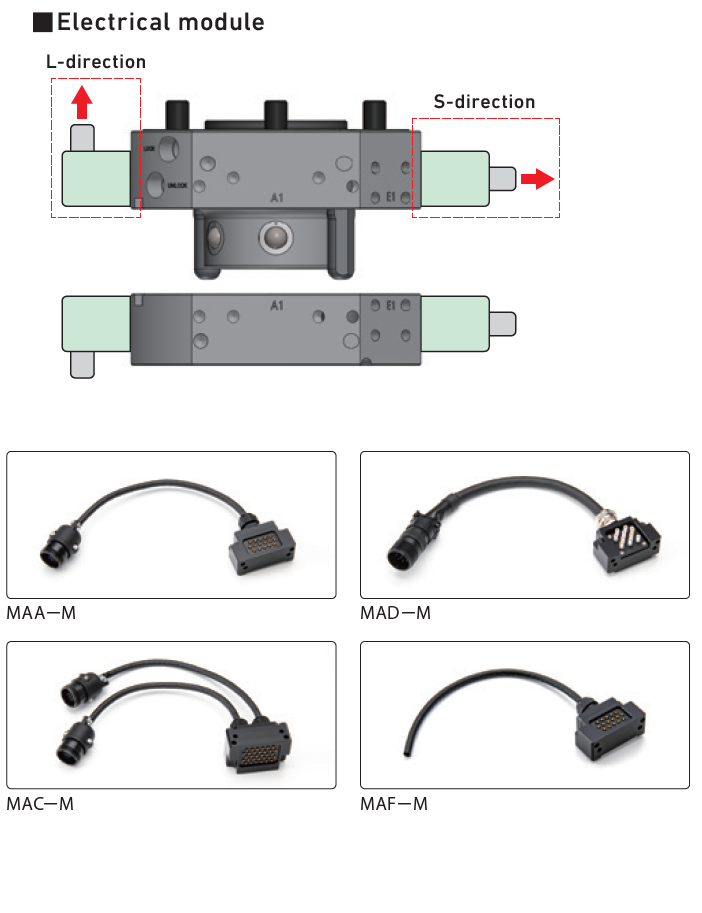

MASTER PLATE: Master(Detachment confirmation sensor)＋ Electrical module (MAB-M,MAE-M)＋ air module(MNA-M,MNB-M) Approach sensor(SVA-M) TOOL PLATE: Tool ＋Electrical module (MAA-T,MAD-T) Air module (MNA-T,MNB-T)＋Approach sensor(SVA-T)

•
•
•
•

CLICK HERE FOR 3D SIMULATION・CAD DOWNLOADS

  **************【external site】 **************

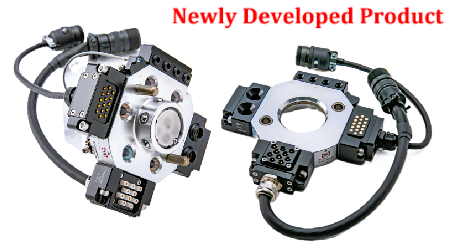

CADENAS 3Dfindit is now available for QUICK-CHANGE NEO!
The company has adopted CADENAS 3Dfindit to distribute 3D CAD data for its new product, QUICK-CHANGE NEO™. The product minimizes the space required for routing electrical wiring and air tubing, thereby expanding the robot’s operating range and reducing the risk of interference between cables and surrounding equipment. In addition, users can freely select and install the modules they need.
