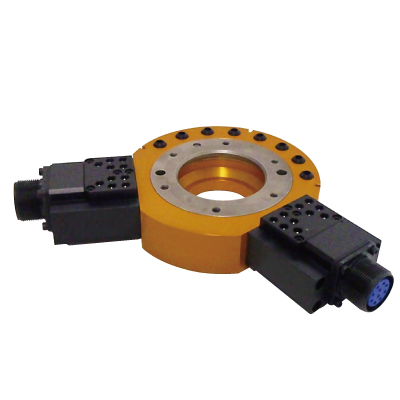

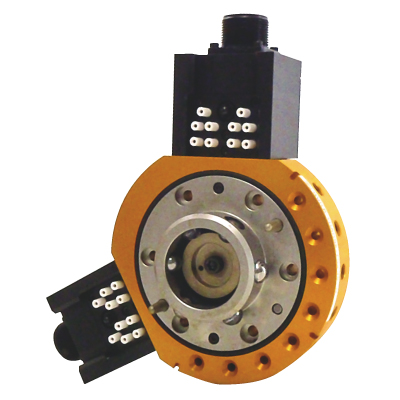

Flex-70 is attached to the robot flange for quick and reliable exchange of end-effectors, such as tools.  The ball-lock system in the Tool Plate is a sturdy specification, even for moment loads. A ground and approach sensor are now available as options in addition to conventional pneumatic ports, electric signals and a lock/unlock sensor.  May be used in welding, press handling and deburring applications.
Earth contact and electric signal module with approach sensor are added as option to usual electric signal contact blocks, pneumatic port blocks and lock/unlock sensor.

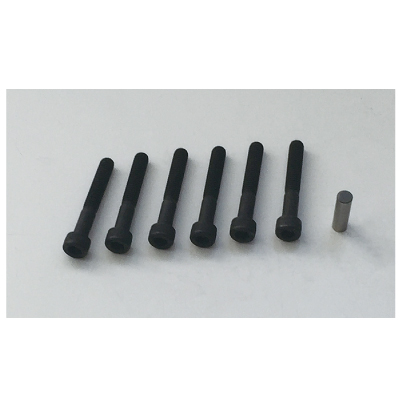

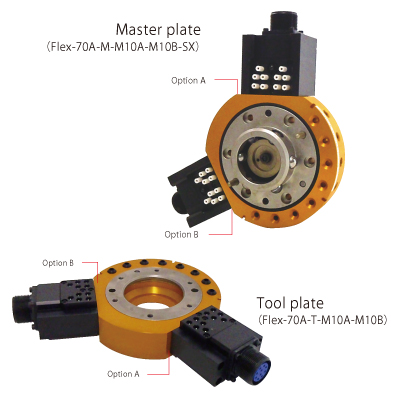

Master plate Attachments
・6 bolts（M6×40)
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

In case combing Flex-70(old version) & Flex-70A (current version), pls confirm a serial number & let us know accordingly.

• Catalog (PDF)

Features of Flex-70

Heavy duty applications

For heavy duty applications, such as deburring, a special seal prevents dust from entering the locking mechanism and electrical contacts when the plates are coupled.

Various range of utilities

In addition to traditional air ports, electrical signals and a lock/unlock sensor, an approach sensor and a ground can be added.

Large misalignment correction capability

The unique design corrects misalignment when the Master and Tool plates couple. An approach sensor system, built into the plates, verifies coupling capability.

Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

Speciffications

Main Body
Load capacity (rated load)		686N（70kg）
Positional repeatability ※1		±0.015 mm
Allowable dynamic moment	Bending direction (Tx, Ty)	686N･m（70kgf･m）
	Twisting direction (Tz)	784N･m（80kgf･m）
Coupling force (with air pressure of 0.49 Mpa) ※2		7,056N(720kgf)
Materials	Frame	Aluminum alloy
	Lock/unlock mechanism	Stainless steel
Overall dimension (when coupled)		φ139×H65mm
Weight (Main body)	Master plate	1,900g
	Tool plate	1,200g
Self-separating mechanism		Ball-locking mechanism
Required air pressure		0.39〜0.68MPa（4〜7kgf/cm2）
Allowable temperature and humidity ranges		0〜50℃、35〜90%（Non-condensing）
Utilities	Pneumatic ports	Rc1/8×8



Options
Utilities	D15A. D15B	Electrical signals	3A×15 ※3
	J16A. J16B	Electrical signals	5A×16  ※4 ※5
	M10A. M10B	Electrical signals	13A×10  ※4 ※6
	A16A. A16B	Electrical signals	Approach Sensor ＋ 5A×16  ※4 ※5
	A08A. A08B	Electrical signals	Approach Sensor ＋ 13A×8  ※4 ※6
	B15N B15P	Electric signals Max.50mA DC24V Non-contact system （Please refer to page 41 for details.）	50mA×15 WEB series connector ※4 In Zone　1 IP67
	B15D	Electric signals Max.5mA DC12V Non-contact system （Please refer to page 41 for details.）	5mA×15 WEB series connector ※4 IP67
	E50A. E50B	Ground	500A (50％ usage) ×1
	P18A. P18B	Pneumatic ports	Rc1/8×4
	P14A. P14B	Pneumatic ports	Rc1/4×2

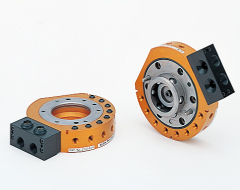

	P3WA. P3WB	Pneumatic ports	Rc3/8×2
Lock/unlock sensor  ※6			Two built-in proximity switches

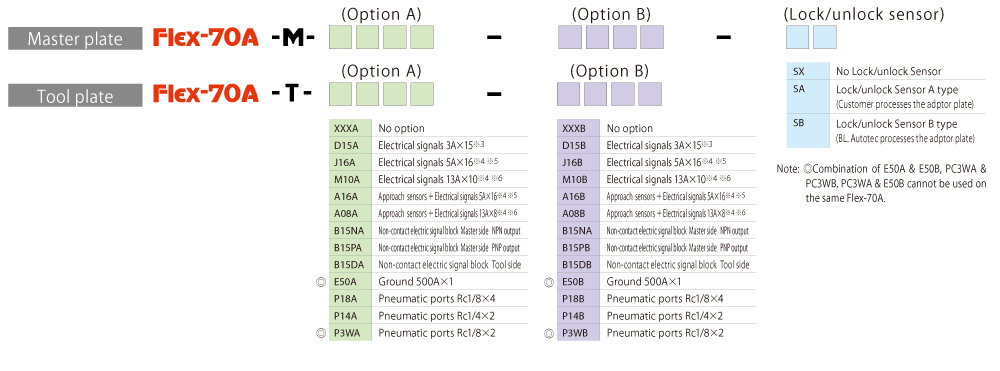

Ordering Information

Option

Electrical signal contact block

Ground

Lock/unlock sensor

Non-contact electric signal block

Pneumatic ports
