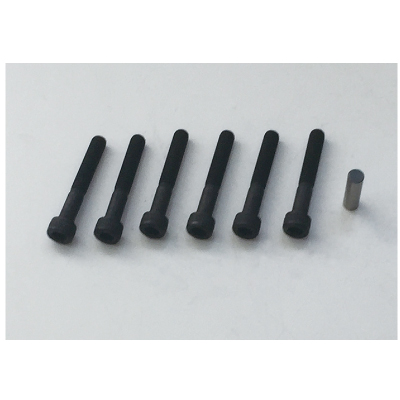

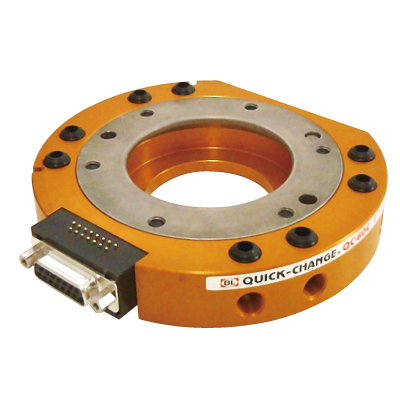

Master plate Attachments
・6 bolts（M6×40)
・1 locating pin
※Seal plate, O-ring and screws are pre-assembled.

• Catalog (PDF)

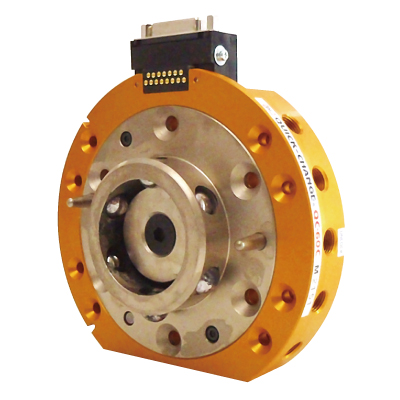

Features of QC-60D

Lock without touching

The Master plate can lock onto the Tool plate with a gap between them.

Superior fail-safe locking mechanism

BL’s unique lock/unlock mechanism contains a mechanical fail-safe feature which does not allow the Master and Tool plates to uncouple if the air pressure is shut off.

Speciffications

Main Body
Load capacity (rated load)		588N（60kg）
Positinal repeatability ※1		±0.015 mm
Allowable dynamic moment	Bending direction (Tx, Ty)	392N･m （40kgf･m）
	Twisting direction (Tz)	588N･m （60kgf･m）
Coupling force (with air pressure of 0.49MPa)		6,570N（670kgf） ※1
Materials	Frame	Aluminum alloy
	Lock/unlock mechanism	Stainless steel
Overall dimension (when coupled)		φ130xH50mm
Weight (Main body)	Master plate	1,340g
	Tool plate	720g
Self-separating mechanism		Ball-locking mechanism
equired air pressure		0.39〜0.68MPa（4〜7kgf/cm2）
Allowable temperature and humidity ranges		0〜50℃、35〜90%（Non-condensing）
Utilities	Electrical signals Max3A DC50V Probe contact	3A×15 or none  ※3
	Pneumatic ports	Rc1/8×8



Options
Utilities	D15Y	Electrical signals	3A×15  ※3
	J16Y	Electrical signals	5A×16  ※4 ※5
	M06Y	Electrical signals	113A×6  ※4 ※6
	M10Y	Electrical signals	13A×10  ※4 ※7
	B15N B15P	電気信号 Max.50mA DC24V 非接触方式	50mA×15 WEB series connector ※4 In Zone　1 IP67
	B15D	電気信号 Max.5mA DC12V 非接触方式	5mA×15 WEB series connector ※4 IP67
	P18Y	空気圧ポート	Rc1/8×4
	P14Y	空気圧ポート	Rc1/4×2
Lock / unlock sensor ※8			Two built-in proximity switches

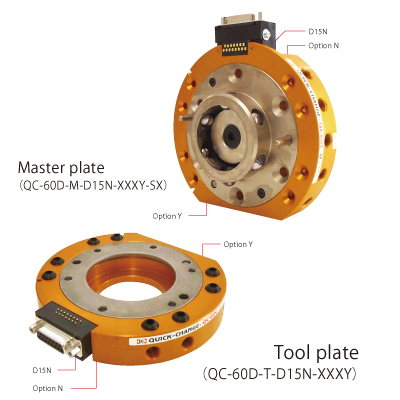

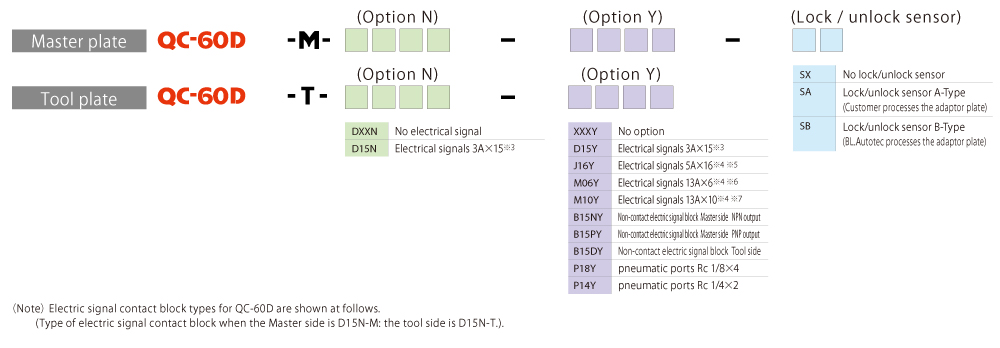

Ordering Information

Option

Electrical signal contact block

Lock/unlock sensor

Non-contact electric signal block

Pneumatic ports
