Product Search

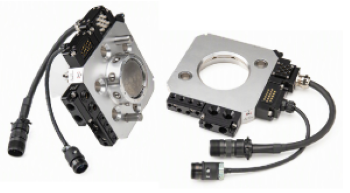

NC-180
Model number:NC-180
NC-180
Model number:NC-180
NC-090
Model number:NC-090
QUICK-CHANGE ATOM
Model number:QUICK-CHANGE ATOM
Load Capacity (rated load) 49N（5kg）
Overrall dimension (when coupled, excluding
leaf spring and connector) φ75×H35mm
Product weight（Main body） Master Plate 330g
Tool Plate 260g
PN-ZERO 2/C-4（CC-Link spec.）
Model number:PN-ZERO 2/C-4（CC-Link spec.）
wire-saving model
Outside dimension refer to the main body outline dreawing
Product weight about 3.0kg
PN-ZERO 2/U-6（Uni-wire spec.）
Model number:PN-ZERO 2/U-6（Uni-wire spec.）
wire-saving model
Outside dimension refer to the main body outline dreawing
Product weight about 3.0kg
PN-ZERO 2/D-5（DeviceNet spec.）
Model number:PN-ZERO 2/D-5（DeviceNet spec.）
wire-saving model
Outside dimension refer to the main body outline dreawing
Product weight about 3.0kg
WRIST COMPLIANCER（LOCK-UP RCC DEVICE）
Model number:WRIST COMPLIANCER（LOCK-UP RCC DEVICE）
WRIST COMPLIANCER（LOCK-UP RCC DEVICE）
WRIST COMPLIANCER
Model number:WRIST COMPLIANCER（RCC DEVICE)
WRIST COMPLIANCER
Couple Joint 1Modules Type
Model number:Couple Joint 1Modules Type
Couple Joint 1Modules Type
Couple Joint 2Modules Type
Model number:Couple Joint 2Modules Type
Couple Joint 2Modules Type
Couple Joint 3Modules Type
Model number:Couple Joint 3Modules Type
Couple Joint 3Modules Type
PN-ZERO 2/36
Model number:PN-ZERO 2/36
Analog signal model
Outside dimension φ89mmxH172mm
Product weight 3.0kg
PN-ZERO 2/24
Model number:PN-ZERO 2/24
Analog signal model
Outside dimension φ89mmxH152mm
Product weight 2.9kg
PN-ZERO 2/12
Model number:PN-ZERO 2/12
Analog signal model
Outside dimension φ89mmxH152mm
Product weight 2.8kg
PN-ZERO 2/6
Model number:PN-ZERO 2/6
Analog signal model
Outside dimension φ89mmxH132mm
Product weight 2.6kg
GC-300A
Model number:GC-300A
| Weight capacity（Rated load） | 2,940N（300kg） |
| Outer dimension (When coupled) | W355×D265×H165mm |
| Product weight（Main body） | Master Plate 18.5kg |
| Tool Plate 9.5kg |
USP-100A
Model number:USP-100A
| Weight capacity（Rated load） | 980N（100kg） |
| Outer dimension (When coupled) | φ179×H79.5mm |
| Product weight（Main body） | Master Plate 3.5kg |
| Tool Plate 2.0kg |
Flex-300A
Model number:Flex-300A
| Weight capacity（Rated load） | 2,980N（300kg） |
| Outer dimension (When coupled) | φ259×H116mm |
| Product weight（Main body) | Master Plate 13.2kg |
| Tool Plate 7.2kg |
QCP-220
Model number:QCP-220
| Weight capacity（Rated load） | 2,156N（220kg） |
| Outer dimension (When coupled) | φ229×H110mm |
| Product weight（Main body） | Master Plate 8.4kg |
| Tool Plate 3.6kg |
QC-150C
Model number:QC-150C
| Weight capacity（Rated load） | 1,470N（150kg） |
| Outer dimension (When coupled) | φ200×H90mm |
| Product weight（Main body） | Master Plate 5,810g |
| Tool Plate 2,860g |
QCP-100A
Model number:QCP-100A
| Weight capacity（Rated load） | 980N（100kg） |
| Outer dimension (When coupled) | φ189×H50mm |
| Product weight（Main body） | Master Plate 3.0k |
| Tool Plate 1.7kg |
Flex-100B
Model number:Flex-100B
| Weight capacity（Rated load） | 980N（100kg） |
| Outer dimension (When coupled) | φ178×H81.5mm |
| Product weight（Main body） | Master Plate 3,900g |
| Tool Plate 2,250g |
Flex-70A
Model number:Flex-70A
| Weight capacity（Rated load） | 686N（70kg） |
| Outer dimension (When coupled) | φ139×H65mm |
| Product weight（Main body） | Master Plate 1,900g |
| Tool Plate 1,200g |
QC-60D
Model number:QC-60D
| Weight capacity（Rated load） | 588N（60kg） |
| Outer dimension (When coupled) | φ130xH50mm |
| Product weight（Main body） | Master Plate 1,340g |
| Tool Plate 720g |
Flex-40B
Model number:Flex-40B
| Weight capacity（Rated load） | 392N（40kg） |
| Outer dimension (When coupled) | φ115×H57mm |
| Product weight（Main body） | Master Plate 1,140g |
| Tool Plate 610g |
QC-20D
Model number:QC-20D
| Weight capacity（Rated load） | 196N（20kg） |
| Outer dimension (When coupled) | φ90×H45.4mm |
| Product weight（Main body） | Master Plate 515g |
| Tool Plate 355g |
QC-10B
Model number:QC-10B
| Weight capacity（Rated load） | 98N（10kg） |
| Outer dimension (When coupled) | φ50×H38.5mm |
| Product weight（Main body） | Master Plate 245g |
| Tool Plate 85g |
Light-5A
Model number:Light-5A
| Weight capacity（Rated load） | 49N（5kg） |
| Outer dimension (When coupled) | φ49mm×H48.5mm |
| Product weight（Main body） | Master Plate 260g |
| Tool Plate 100g |
QC-1
Model number:QC-1
| Weight capacity（Rated load） | 9.8N (1kg) |
| Outer dimension (When coupled) | φ32xH29mm |
| Product weight（Main body） | Master Plate 60g |
| Tool Plate 30g |
QUICK-CHANGE GIGA
Model number:CUICK-CHANGE GIGA
| Weight capacity（Rated load） | 6,860N(700kg) |
| Outer dimension (When coupled) | φ350×H160mm |
| Product weight（Main body） | Master Plate 25kg |
| Tool Plate 15kg |
QUICK-CHANGE ZEUS
Model number:QUICK-CHANGE ZEUS
| Weight capacity（Rated load） | 1,470～2,254N(150～230kg) |
| Outer dimension (When coupled) | φ226×H110mm |
| Product weight（Main body） | Master Plate 5.4kg |
| Tool Plate 2.3kg |
GC-300A
Model number:GC-300A
| Weight capacity（Rated load） | 2,940N（300kg） |
| Outer dimension (When coupled) | W355×D265×H165mm |
| Product weight（Main body） | Master Plate 18.5kg |
| Tool Plate 9.5kg |
Robot Interface Plate for QC-10C AP104 Model number:AP104
PCD:31.5
Bolt size:M5
Hole for locating pin:
φ5H7
Boss size:φ20h7
Boss Height:3mm
Accessories
(Bolts and pin):
M5×10 ( 7 pcs ）
MSY5-15 ( 1 pc ）
Weight
(Including bolts and pins):
79g ( Bolts 7pcs )
68g ( Bolts 7pcs )
Robot Interface Plate for QC-10C AP103 Model number:AP103
PCD:56
Bolt size:M4
Hole for locating pin:
2×φ4H7
Boss size:φ62H7
Boss Depth:8mm
Accessories(Bolts and pin)
M5×10 ( 4 pcs ）
MSY4-15 ( 1 pc ）
Weight
(Including bolts and pins):
130g
Robot Interface Plate for QC-10C AP102 Model number:AP102
PCD:60
Bolt size:M5
Hole for locating pin:
φ5H7
Boss size:φ45H7
Boss Depth:Depth 10.5mm
Accessories(Bolts and pin):
M5×10 ( 4 pcs ）
MSY5-15 ( 1 pc ）
Weight
(Including bolts and pins)
68g
Robot Interface Plate for QC-10C AP101 Model number:AP101
PCD:31.5
Bolt size:M5
Hole for locating pin:
2×φ5H7
Boss size:φ12h7
Boss Height:3mm
Accessories(Bolts and pin)
M5×10 ( 4 pcs ）
MSY5-15 ( 1 pc ）
Weight
(Including bolts and pins):
71g
Primary current module PC3EM,PC3ET Model number:GC-300-M(T)-PC3EM/GC-300-M(T)-PC3ET
Primary current module PC3DM,PC3DT Model number:GC-300A0M(T)-PC3DM,PC3DT
Electric signal module ( Servo module) SC04M,SC06M Model number:GC-300-M(T)-SC04M,SC06M
Primary current module PC3EM,PC3ET Model number:GC-300-M(T)-PC3EM/GC-300-M(T)-PC3ET
Primary current module PC3DM,PC3DT Model number:GC-300A0M(T)-PC3DM,PC3DT
Electric signal module ( Servo module) SC04M,SC06M Model number:GC-300-M(T)-SC04M,SC06M
Electrical signal contact block D15U Model number:USP-100A-M(T)-D15U
( female receptacle )
※Please use DDK, 17JE-23150-02(DBA)-CG or its equivalent,
on the plug side. (Use RoHS-compliant. D-sub plug products.)
Lock/unlock sensor SA,SB Model number:Flex-300A-M(T)-SA,SB
verify piston position, thus reliably
checking the lock and unlock status.
Pneumatic ports P3WA,P3WB Model number:Flex-300A-M(T)-P3WA,P3WB
Pneumatic ports P38A,P38B Model number:Flex-300A-M(T)-P38A,P38B
Pneumatic ports P14A,P14B Model number:lex-300A-M(T)-P14A,P14B
Pneumatic ports P18A,P18B Model number:Flex-300A-M(T)-P18A,P18B
Ground E50A,E50B Model number:Flex-300A-M(T)-E50A,E50B
Non-contact electric signal block B15NA_B,B15PA_B,B15DA_B Model number:Flex-300A-M(T)-B15NA_B,B15PA_BMaster side only）,B15DA_B（Tool side only）
B15PA/B PNP output
Receptacle connector: WEBR-2119S-D for B15NA/B and B15PA/B
Receptacle connector: WEBR-2116FS-D for B15DA/B
Electrical signal contact block M20A,M20B Model number:Flex-300A-M(T)-M20A,M20B
Use two D/MS3102A18-1P for the M20A Master side
Use two D/MS3102A18-1S for the M20A Tool side
Use two D/MS3102A18-19P for the M20B Master side
Use two D/MS3102A18-19S for the M20B Tool side
Electrical signal contact block M10A,M10B Model number:Flex-300-M(T)-M10A,M10B
Use D/MS3102A18-1P for the M10A Master side
Use D/MS3102A18-1S for the M10A Tool side
Use D/MS3102A18-19P for the M10B Master side
Use D/MS3102A18-19S for the M10B Tool side
Electrical signal contact block J32A,J32B Model number:Flex-300A-M(T)-J32A,J32B
Use two JMR2116M-D for the J32A Master side
Use two JMR2116F-D for the J32A Tool side
Use two JMR2116MX-D for the J32B Master side
Use two JMR2116FX-D for the J32B Tool side
Electrical signal contact block J16A,J16B Model number:Flex-300A-M(T)-J16A,J16B
Use JMR2116M-D for the J16A Master side
Use JMR2116F-D for the J16A Tool side
Use JMR2116MX-D for the J16B Master side
Use JMR2116FX-D for the J16B Tool side
Electrical signal contact block L16A-M Model number:L16A-M
Use JMR2119M-D for the L16A on the Master side
Use JMR2116M-D for the J16A on the Master side
Use JMR2116F-D for the J16A on the Tool side
Pneumatic ports P38B Model number:QCP-220-M(T)-P38B
Pneumatic ports P3WB Model number:QCP-220-M(T)-P3WB
Non-contact electric signal block B15NB,B15PB,B15DB Model number:B15NB,B15PB（Master side only）/B15DB（Tool side only）
B15PB PNP出力
Receptacle connector: WEBR-2119S-D for B15NB and B15PB
Receptacle connector: WEBR-2116FS-D for B15DB
Electrical signal contact block M10B Model number:QCP-220-M(T)-M10B
Use D/ MS3102A18-9P on the Master side of M10B
Use D/ MS3102A18-19S on the Tool side of M10B
(Use RoHS-complant MS receptacle products.)
Electrical signal contact block J16B Model number:QCP-M(T)-J16B
Use JMR2116MX-D for the J16B on the Master side
Use JMR2116FX-D for the J16B on the Tool side
Electrical signal contact block L16A,J16A Model number:L16A(Master side only)/J16A(Tool side only)
Use JMR2119M-D for the L16A on the Master side
Use JMR2116M-D for the J16A on the Master side
Use JMR2116F-D for the J16A on the Tool side
Lock/unlock sensor SA,SB Model number:QC-150C-M(T)-SA,SB
verify piston position, thus reliably
checking the lock and unlock status.
Pneumatic ports P3WZ Model number:QC-150C-M(T)-P3WZ
Pneumatic ports P38Z Model number:QC-150C-M(T)-P38Z
Pneumatic ports P14Z Model number:QC-150C-M(T)-P14Z
Pneumatic ports P18Z Model number:QC-150C-M(T)-P18Z
Ground E50Z Model number:QC-150C-M(T)-E50Z
Non-contact electric signal block B15NZ,B15PZ,B15DZ Model number:QC-150C-B15NZ,B15PZ,B15DZ
B15PZ PNP output
Receptacle connector: WEBR-2119S-D for B15NZ and B15PZ
Receptacle connector: WEBR-2116FS-D for B15DZ
Electrical signal contact block A08Z Model number:QC-150C-M(T)-A08Z
13A×8 (MS connector)
Use D/MS3102A18-1P for theA08Z Master side
Use D/MS3102A18-1S for the A08Z Tool side
Electrical signal contact block A16Z Model number:QC-150C-M(T)-A16Z
5A×16 (JM connector)
Use JMR2119M-D for the A16Z Master side
Use JMR2119F-D for the A16Z Tool side
Electrical signal contact block M19Z Model number:QC-150C-M(T)-M19Z
Use D/MS3102A22-14P for the M19Y Master side
Use D/MS3102A22-14S for the M19Y Tool side
Electrical signal contact block M10Z Model number:QC-150C-M(T)-M10Z
Use D/MS3102A18-1P for the M10Z Master side
Use D/MS3102A18-1S for the M10Z Tool side
Electrical signal contact block J16Z Model number:QC-150C-M(T)-J16Z
Use JMR2116M-D for the J16Z Master side
Use JMR2116F-D for the J16Z Tool side
Electrical signal contact block D37Z Model number:QC-150C-M(T)-D37Z
(female receptacles)
※Plug side is DDK, 17 JE-23370-02 (D8A) –CG, or its equivalent.
Lock/unlock sensor SA,SB Model number:QCP-100A-M(T)-SA,SB
position on and lock/ unlock status.
Pneumatic ports P38A,P38B Model number:QCP-100A-M(T)-P38A,P38B
Non-contact electric signal block B15NA_B,B15PA/B,B15DA_B Model number:QCP-100A-M(T)-B15NA_B,B15PA/B,B15DA_B
B15PA/B PNP output
Receptacle connector: WEBR-2119S-D for B15NA/B and B15PA/B
Receptacle connector: WEBR-2116FS-D for B15DA/B
Electrical signal contact block R16A,R16B Model number:QCP-100A-M(T)-R16A,R16B
Please solder the hard-wiring (Please use
J16A, J16B or L16A for the Master side)
Electrical signal contact block M10A,M10B,L07A Model number:QCP-!A-M(T)-M10A,M10B,L07A
13A×7＋lock/unlock signals (L07A)
Use D/MS3102A18-1P for the M10A and L07A Master side
Use D/MS3102A18-1S for the M10B Tool side
Use D/MS3102A18-19P for the M10B Master side
Use D/MS3102A18-19S for the M10B Tool side
(Use RoHS-compliant MS receptacle products)
Electrical signal contact block J16A,J16B Model number:QCP-100A-M(T)-J16A,J16B
JUse JMR2116M-D (DDK) for the J16A Master side
Use JMR2116F-D (DDK) for the J16A Tool side
Use JMR2116MX-D (DDK) for the J16B Master side
Use JMR2116FX-D (DDK) for the J16B Tool side
Use JMR2119M-D (DDK) for the J16A Master side
Lock/unlock sensor SA,SB Model number:Flex-100B-M-SA,SB
position, thus reliably checking the lock and
unlock status.
Pneumatic ports P3WA,P3WB Model number:Flex-100B-M(T)-P3WA,P3WB
Pneumatic ports P38A,P38B Model number:Flex-100B-M(T)-P38A,P38B
Pneumatic ports P14A,P14B Model number:Flex-100B-M(T)-P14A,P14B
Pneumatic ports P18A,P18B Model number:Flex-100B-M(T)-P18A,P18B
Ground E50A,E50B Model number:Flex-100B-M(T)-E50A,E50B
Non-contact electric signal block B15NA_B,B15PA_B,B15DA_B Model number:Flex-100-M(T)-B15NA_B,B15PA_B,B15DA_B
B15PA/B PNP output
Receptacle connector: WEBR-2119S-D for B15NA/B and B15PA/B
Receptacle connector: WEBR-2116FS-D for B15DA/B
Electrical signal contact block D15A,D15B Model number:Flex-100-M(T)-D15A,D15B
(female receptacles)
※Plug side is DDK. 17JE-23150-02( D8A) -CG or its equivalent.
Lock/unlock sensor SA,SB Model number:SA,SB
verify piston position, thus reliably
checking the lock and unlock status
Pneumatic ports P3WA,P3WB Model number:P3WA,P3WB
Pneumatic ports P14A,P14B Model number:P14A,P14B
Pneumatic ports P18A,P18B Model number:Flex-70A-M(T)-P18A,P18B
Ground E50A,E50B Model number:Flex-70A-M(T)-E50A,E50B
Non-contact electric signal block B15NA_B,B15PA_B,B15DA_B Model number:Flex-70A-M(T)-B15NA_B,B15PA_B,B15DA_B
B15PA/B PNP output
Receptacle connector: WEBR-2119S-D for B15NA/B and B15PA/B
Receptacle connector: WEBR-2116FS-D for B15DA/B
Electrical signal contact block A08A_A08B Model number:Flex-70A-M(T)-A08A_A08B
13A×8 (MS connector)
Use D/MS3102A 18-1P for the A08A master side
Use D/MS3102A 18-1S for the A08A Tool side
Use D/MS3102A 18-19P for the A08B Master side
Use D/MS3102A 18-19S for the A08B Tool side
Electrical signal contact block A16A,A16B Model number:Flex-70A-M(T)-A16A,A16B
5A×16 (JM connector)
Use JMR2119M-D for the A16A master side
Use JMR2116F-D for the A16A Tool side
Use JMR2119MX-D for the A16B Master side
Use JMR2116FX-D for the A16B Tool side
Electrical signal contact block M10A,M10B Model number:Flex-70A-M(T)-M10A,M10B
Use D/MS3102A 18-1P for the M10A master side
Use D/MS3102A 18-1S for the M10A Tool side
Use D/MS3102A 18-19P for the M10B Master side
Use D/MS3102A 18-19S for the M10B Tool side
Electrical signal contact block J16A,J16B Model number:Flex-70A-M(T)-J16A,J16B
Use JMR2116M-D for the J16A master side
Use JMR2116F-D for the J16A Tool side
Use JMR2116MX-D for the J16B Master side
Use JMR2116FX-D for the J16B Tool side
Electrical signal contact block D15A,D15B Model number:Flex-70A-M(T)-D15A,D15B
(female receptacles)
※Plug side is DDK, 17JE-23150-02(D8A) –CG, or its equivalent.
Lock/unlock sensor SA,SB Model number:QC-60D-M(T)-SA,SB
thus reliably checking the lock and unlock status.
Pneumatic ports P14Y Model number:QC-60D-M(T)-P14Y
Pneumatic ports P18Y Model number:QC-60D-M(T)-P18Y
Non-contact electric signal block B15NY,B15PY,B15DY Model number:QC-60D-M(T)-B15NY,B15PY(Master side only),B15DY(Master side only)
B15PY PNP output
Receptacle connector: WEBR-2119S-D for B15NY and B15PY
Receptacle connector: WEBR-2116FS-D for B15DY
Electrical signal contact block M10Y Model number:QC-60D-M(T)-M10Y
Use D/MS3102A18-1P for the M10Y Master side
Use D/MS3102A18-1S for the M10Y Tool side
Electrical signal contact block M06Y Model number:QC-60D-M(T)-M06Y
Use D/MS3102A14S-6P for the M06Y Master side
Use D/MS3102A14S-6S for the M06Y Tool side
Electrical signal contact block J16Y Model number:QC-60D-M(T)-J16Y
Use JMR2116M-D for the J16Y Master side
Use JMR2116F-D for the J16Y Tool side
Electrical signal contact block D15Y Model number:QC-60D-M(T)-D15Y
(female receptacles)
※Plug side is DDK, 17 JE-23150-02 (D8A) –CG, or its equivalent.
Lock/unlock sensor SA,SB Model number:Flex-40B-M(T)-SA,SB
thus reliably checking the lock and unlock status.
Pneumatic ports P14A,P14B Model number:Flex-40B-M(T)-P14A,P14B
Pneumatic ports P18A,P18B Model number:Flex-40B-M(T)-P18A,P18B
Non-contact electric signal block B15NA_B,B15PA_B,B15DA_B Model number:Flex-40B-M(T)-B15NA_B,B15PA_B(Master side only),B15DA_B(Tool side only)
B15PA/B PNP output
Receptacle connector: WEBR-2119S-D for B15NA/B and B15PA/B
Receptacle connector: WEBR-2119FS-D for B15DA/B
Electrical signal contact block A08A,A08B Model number:Flex-40B-M(T)-A08A,A08B
13A×8 (MS connector)
U se D/MS3102A18-1P for the A08A master side
Use D/MS3102A18-1S for the A08A Tool side
Use D/MS3102A18-19P for the A08B Master side
Use D/MS3102A18-19S for the A08B Tool side
Electrical signal contact block A16A,A16B Model number:Flex-40B-M(T)-A16A,A16B
5A×16 (JM connector)
Use JMR2119M-D for the A16A master side
Use JMR2116F-D for the A16A Tool side
Use JMR2119MX-D for the A16B Master side
Use JMR2116FX-D for the A16B Tool side
Electrical signal contact block M10A,M10B Model number:Flex-40B-M10A,M10B
Use D/MS3102A18-1P for the M10A master side
Use D/MS3102A18-1S for the M10A Tool side
Use D/MS3102A18-19P for the M10B Master side
Use D/MS3102A18-19S for the M10B Tool side
Electrical signal contact block J16A,J16B Model number:Flex-40B-M(T)-J16A,J16B
Use JMR2116M-D for the J16A master side
Use JMR2116F-D for the J16A Tool side
Use JMR2116MX-D for the J16B Master side
Use JMR2116FX-D for the J16B Tool side
Electrical signal contact block D15A,D15B Model number:Flex-40B-M(T)-D15A,D15B
(female receptacles)
※Plug side is DDK, 17JE-23150-02 (D8A) –CG, or its equivalent.
Electrical signal contact block D15N Model number:QC-20D-M(T)-D15N
( female receptacle )
Pneumatic ports M15×12
※Please provide a 17JE-23150-02(D8A)-CG plug or its equivalent.(D-sub plugs are RoHS.)
Electrical signals DBPA Model number:QC-20D-M(T)-DBPA
3A×15 D-Sub 15 contacts
( female receptacle )
Pneumatic ports M15×12
※Please provide a 17JE-23150-02(D8A)-CG plug or its equivalent.(D-sub plugs are RoHS.)
Pneumatic ports M5×8
Electrical signals DAPB Model number:QC-20D-M(T)-DAPB
Dサブ15コンタクト（雌レセプタクル）※2
空気圧ポートM5×12本
（※2）プラグ側は含んでおりません。17JE-23150-02（D8A）-CGまたは同等品をご用意ください。（Dサブ15コンタクト雄プラグネジM2.6）
Electrical signals DAPA Model number:QC-20D-M(T)-DAPA
( female receptacle )
※Please provide a 17JE-23150-02(D8A)-CG plug or its equivalent.(D-sub plugs are RoHS.)
Pneumatic ports M15×12
No electrical signal DXPB Model number:QC-20D-M(T)-DXPB
No electrical signal DXPA Model number:QC-20D-M(T)-DXPA
Electrical signal contact block K20L Model number:QC-10B-M(T)-K20L
Electrical signal contact block K10L Model number:QC-10B-M(T)-K10L
Electrical signal contact block K20A Model number:QC-10B-M(T)-K20A
Electrical signal contact block K10A Model number:QC-10B-M(T)-K10A
Shaft receptacle adaptor SA○○ Model number:Light-5A-M(T)-SA○○
Note : ○○ is shaft diameter.
(For example, for a diameter of φ8mm, use 08,
for a diameter of φ16mm,use 16.)
Electrical signal contact block H30A Model number:Light-5A-M(T)-H30A
Electrical signal contact block H20L Model number:Light-5A-M(T)-H20L
Electrical signal contact block H10L Model number:Light-5A-M(T)-H10L
Electrical signal contact block H20A Model number:Light-5A-M(T)-H20A
Electrical signal contact block H10A Model number:Light-5A-M(T)-H10A
Pneumatic ports V Model number:QC-1-M（T)-V
Pneumatic ports P Model number:QC-1-M(T) P
Electrical signal contact block D Model number:QC-1-M（T）-D
© Copyright 2018 BL AUTOTEC, Ltd.All Rights Reserved.
